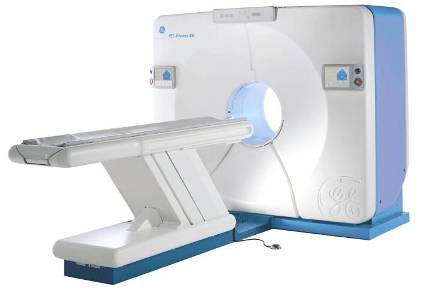

The GE Advance NXi PET system is optimized for routine 2D and 3D clinical studies. The Advance NXi has capabilities for imaging all available PET tracers and provides superior image quality, high throughput, easy operator interaction and proven reliability. The uncompromising design of the Advance’s high-speed detection system results in high-resolution image quality without sacrificing count rate performance and sensitivity necessary for fast acquisitions. Furthermore, the Advance does not use data reduction techniques such as “mashing” which are known to degrade image resolution and result in quantitative uncertainties. The Advance NXi is the perfect choice for cardiac imaging as compared to other PET-only imaging systems:

  • Image Quality – More signal with highest 2D & 3D slice sensitivity & lowest scatter fraction
  • Fast Acquisitions – High count rate capability for Rb-82 studies
  • Highest Resolution – Best peripheral transaxial resolution
  • NM Workstation – NM P&R workstation provides basic review and analysis – Just like SPECT
  • Quantitative Analysis – 3rd party software – Emory, Cedars, 4DM-SPECT
  • Cardiac Gating – Up to 20 frames per cardiac cycle, fixed and variable forward gating, bad beat rejection
Tweet about this on TwitterShare on FacebookShare on LinkedInGoogle+
Advance NXI
Speak to our experts about Advance NXI
We provide Nationwide coverage for on-site services, and our technicians are available to answer your questions today!
  • This field is for validation purposes and should be left unchanged.
  • PET gantry containing 18 detector rings of BGO crystals
  • Dual-table and gantry motion control panels displaying gantry and table position
  • Convenient foot pedals for table up/down control
  • Fast table movement with simultaneous up/in or down/out
  • Internally cooled gantry – Eliminates need for water chiller
  • Advanced Segmented Attenuation Correction software
  • High speed acquisition and reconstruction electronics
  • Large 60 cm patient bore
  • 400 lb patient table weight limit
  • Automatic loading and storage of all rod sources used for calibration and attenuation correction
  • PET DICOM connectivity (Query, Retrieve, Send, Receive) and DICOM Print
  • Operator Workstation (OWS) with flexible multitasking capabilities
  • Static, dynamic and cardiac gated emission acquisition modes
  • Operators Workstation (OWS)
  • ECG cardiac gate
  • “Typical” installation
  • 1-year parts and labor warranty
  • Refurbished System
  • Full Service
  • PM-Only
  • T&M
  • First Call
  • Shared Risk
  • Workstation
  • CVIT cardiac software package with either Cedars or Emory analysis package
  • Invia 4DMSPECT cardiac software package
  • UPS backup power unit
  • On-site applications training
  • Remote viewing station
  • Discounted multi-year service agreements
